Built on 30 years of rock-solid delivery for Live Sports, it’s time to discover a new kind of Ultra-capable IP Media Platform for Transport, Remote/Distributed Production and more
XSCEND 2RU Edition
Application flexibility is the hallmark of Xscend’s next generation design, delivering unprecedented capabilities in a small 2RU footprint. The platform addresses the migration from SDI-to-IP and IP-to-IP environments along with high density, low latency remote/distributed production applications, including Ground to Cloud connectivity. Up to 128 contribution quality media and data services across both managed and unmanaged (open internet) networks can be supported.
Through its hardware modularity, software upgradeability and license configurability, flexible workflows can be adapted to support a wide variety of diverse use cases.
- Scalable and configurable high performance IP Media Gateway with up to 128 services per 2RU device
- Multi-function, multi-application platform with the broadest library of deployment use cases
- Standards compliant processing with ST2022-2/6, ST2110-20/22/30/40, JPEG2000, JPEG-XS, HEVC with SRT and VSF TR-01/07/08
- Pure IP-based media edge gateway w/ ST2110 & NMOS support
- Manage intuitively via standalone Web GUI, ProMD-EMS software or third-party NMS
- Multiple 100Gbps Ethernet interfaces
- Easy adaptation to L2/L3 networks with integrated switching and standard protocol support
- Leverage both managed and unmanaged networks
- IP Media Platform gateway with 100Gbps packet switching and fault tolerant dual trunk network interfaces
- Ultra resilient, with carrier class design, hot-swappable fully redundant hardware, and NEBs compliance
- Fully interoperable with the Media Links 100G Ecosystem including MD8000, MDP, MDX & ProMD-EMS product lines
Xscend 2RU Front View with front panel cover
Xscend 2RU Front View without front panel cover
Xscend 2RU Rear View (w/ variable module configuration)
Xscend 2RU Overhead View with front panel cover
Depending on your choice of configuration, features include:
- Hybrid Design w/ Hardware and Software Upgradeability
- Add up to 8 installed High Density MPU Cards offering a maximum of 128 Services per 2RU chassis
- Select up to 4K UHD Video resolution w/ Codec support for JPEG2000, JPEG-XS, H.264, HEVC with SRT and more
- Configure with Redundant (hot-swappable) Power supplies with maximum power consumption at <1300W
- Choose User Data Interfaces at 25G/10G/1G/100M Ethernet
- Select Trunk Interfaces at 100G/25G/10G/1G Ethernet
- Deploy on Managed & Unmanaged (open Internet) network connection
In addition, all Xscend 2RU devices offer a hardened, carrier-class construction, interoperability w/ ML Ecosystem and are delivered in a compact 2RU footprint, 19” (481mm) wide x 20” (500mm) depth

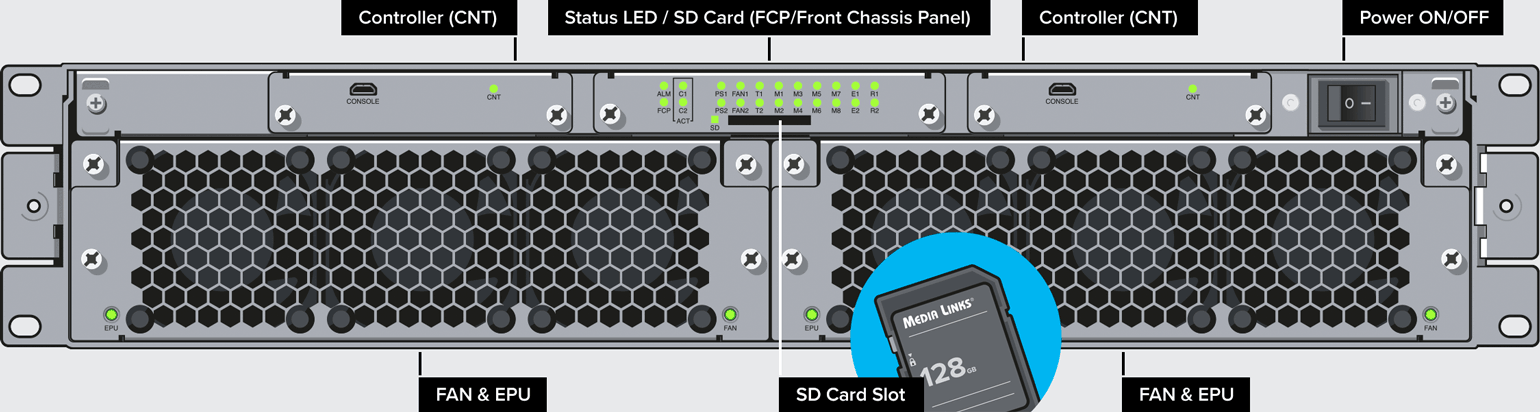

DEVICE FRONT (Without Front Panel)
DEVICE REAR
*Features and specification subject to change. Contact your Sales team for details
